GRAS RA0002 Right-angled adjustable adapter for 1/2" mic/ 1/4" preamp.

  •  Part Number: GRAS RA0002
     Category: GRAS Sound & Vibration
  •  View: 4
     Status: Available

  • Length: 13.6 mm
    Inner threading for preamp.: 5.70-60 UNS-2
    Outer threading for mic.: 11.70-60 UNS-2
    Material: stainless steel

    The RA0002 is a 90-degree right-angle adjustable adapter designed for use with a 1/2" measurement microphone and a 1/4" preamplifier. It is compatible with any standard 1/2" microphone and 1/4" preamplifier, such as the GRAS 40AO microphone and 26CB preamplifier. The RA0002 allows free rotation, enabling users to adjust the orientation of the preamplifier and cable without disrupting the connection between the microphone and preamplifier.

  • Sale Price: Liên hệ
  • 0903368648
    +84903368648
Product Information

Technology

Introduction

The GRAS RA0002 is a 90-degree right-angle adapter designed for use with a 1/2" measurement microphone and a 1/4" preamplifier. It allows full 360-degree rotation in both clockwise and counterclockwise directions, making it ideal for applications where the microphone remains fixed, but the preamplifier needs to be adjusted—either to fit within a confined space or to position the cables as needed.

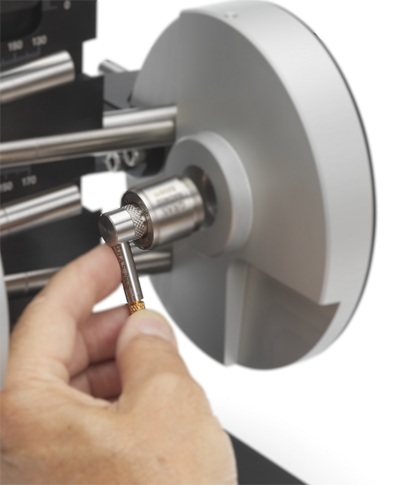

Below is an example of the RA0002 being used as an interface between a GRAS 40AG microphone capsule (mounted inside a 711-style ear simulator) and a 1/4" 26CS preamplifier, integrated into the GRAS 45CC Acoustics Test Fixture.

Alternatives

Right-angled adapter for 1/2" microphone and 1/4" preamplifier (fixed without rotating mechanism) is the RA0001.
Right-angled adapter for a 1/2" microphone and a 1/2" preamplifier is the RA0190.
Right-angled adapter for a 1/4" microphone and a 1/4" preamplifier is the RA0006.

Quality & Warranty

GRAS accessories are made of stainless steel, alloys and high-quality composites. These items are covered by a 2-year warranty respecting their intended use.
