The 26TK is a 1/2" microphone preamplifier with integrated 7-pin LEMO male connector. The CCP equivalent is GRAS 26CA.
The Type 26TK is delivered with a built-in TEDS chip and can be programmed as a single unit with a microphone fitted.
Technology
Introduction
GRAS 26TK is a preamplifier designed for general purpose in the laboratory and field and accommodates directly all IEC 61094 standardized ½” externally polarized measurement microphones.
It is rugged and reliable and can handle microphone signals up to 50 Vpeak within 0.5 Hz to 200 kHz. The printed circuit board is made by use of thick-film substrate technology and optimized with respect to maximum suppression of microphonics and moisture rejection.
The high-quality, standard 7-pin LEMO male connector is integrated into the preamplifier and ensures that only one type of connector and cable is required for both connection and extension.
26TK is factory calibrated individually and delivered with a calibration chart stating its A-weighted and linear self-noise.
Compatibility
26TK is compatible with ½-inch microphones as defined in international standard IEC1094 Measurement Microphones, Part 4: Specifications for working standard microphones. The mounting thread (11.7 mm - 60 UNS-2) is compatible with other available makes of similar microphone preamplifiers.
GRAS 26TK is integrated with a 7-pin LEMO series 1B plug.
Connector
.png)

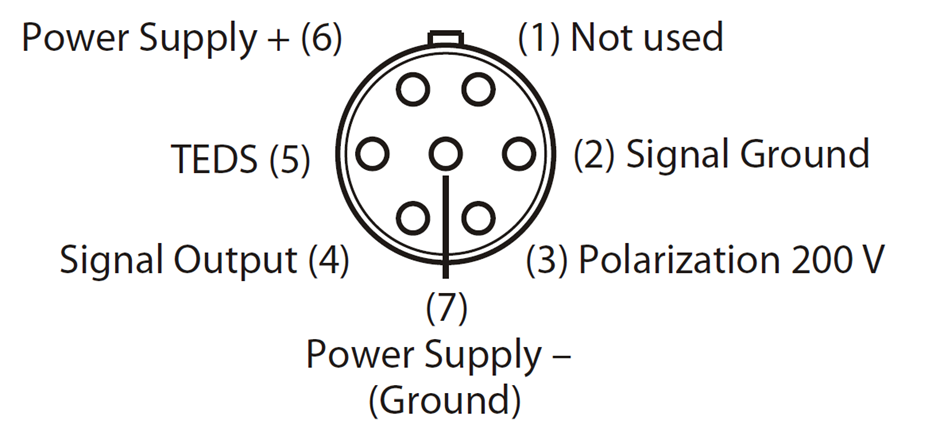

7-pin LEMO plug 1B male (ext. view)
Specifications
| Parameter |
Unit |
Value |
| Frequency range (±0.2 dB) with 18 pF microphone dummy |
Hz |
2.5 to 200 k |
| Slew rate |
V/µs |
20 |
| Input impedance |
GΩ // pF |
20 // 0.4 |
| Output impedance |
Ω |
75 |
| Output Voltage Swing, max. @ ±14V/+28V power supply |
Vp |
12 |
| Output Voltage Swing, max. @ ±60V/+120V power supply |
Vp |
50 |
| Noise (A-Weighted) max. |
µV |
2.5 |
| Noise (A-Weighted) typ. |
µV |
1.8 |
| Noise (Linear 20 Hz – 20 kHz) max. |
µV |
6 |
| Noise (Linear 20 Hz – 20 kHz) typ. |
µV |
3.5 |
| Gain |
dB |
-0.25 |
| Power supply, single |
V |
28 to 120 |
| Power supply, balanced |
V |
±14 to ±60 |
| DC-offset, min., single suppy |
V |
0.5 x Vs - 1 |
| DC-offset, max., single suppy |
V |
0.5 x Vs + 4 |
| DC-offset, balanced supply |
V |
-1 to 4 |
| Temperature range, operation |
°C / °F |
-30 to 70 / -22 to 158 |
| Temperature range, storage |
°C / °F |
-40 to 85 / -40 to 185 |
| Humidity range non condensing |
% RH |
0 to 95 |
| TEDS (IEEE 1451.4) |
– |
27 v. 1.0 |
| Connector type |
– |
7-pin LEMO (FGG.1B.307) |
| CE/RoHS compliant/WEEE registered |
– |
Yes / Yes, Yes |
| Weight |
g / oz |
35.0 / 1.24 |
Conditions: 23 °C Ambient temperature, ±60V/+120V power supply, 18 pF dummy microphone, 3 m output cable.
.jpg)

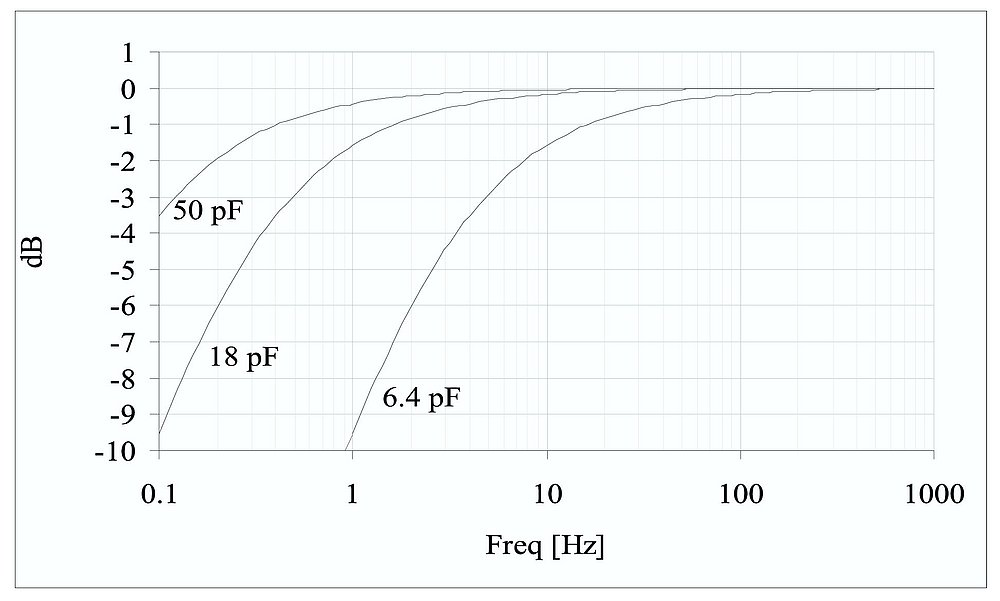

Low frequency response for various microphone capacities
.jpg)

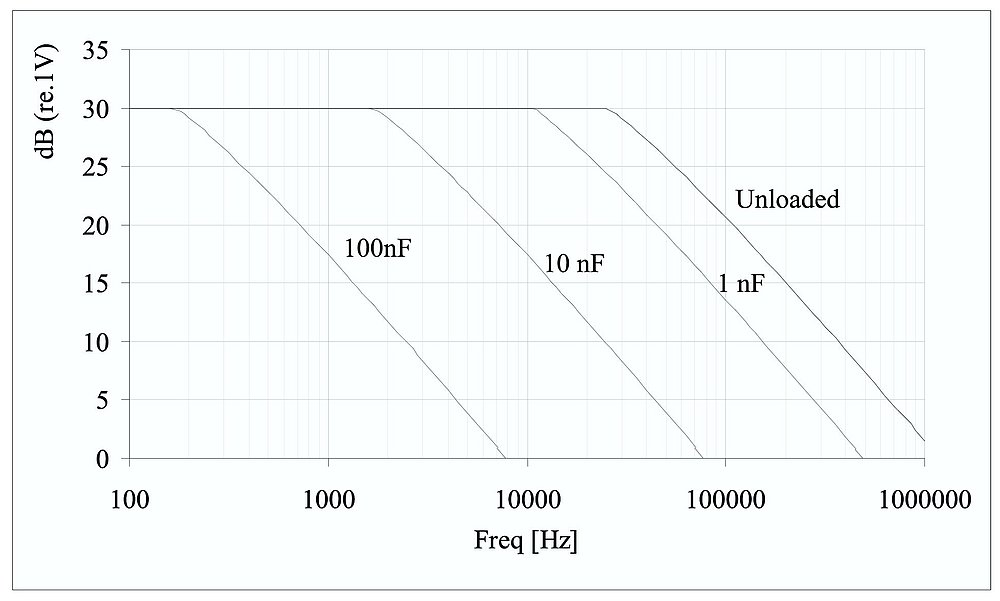

Max. RMS output signal for various cable loads with 120 V supply
GRAS Sound & Vibration reserves the right to change specifications and accessories without notice.

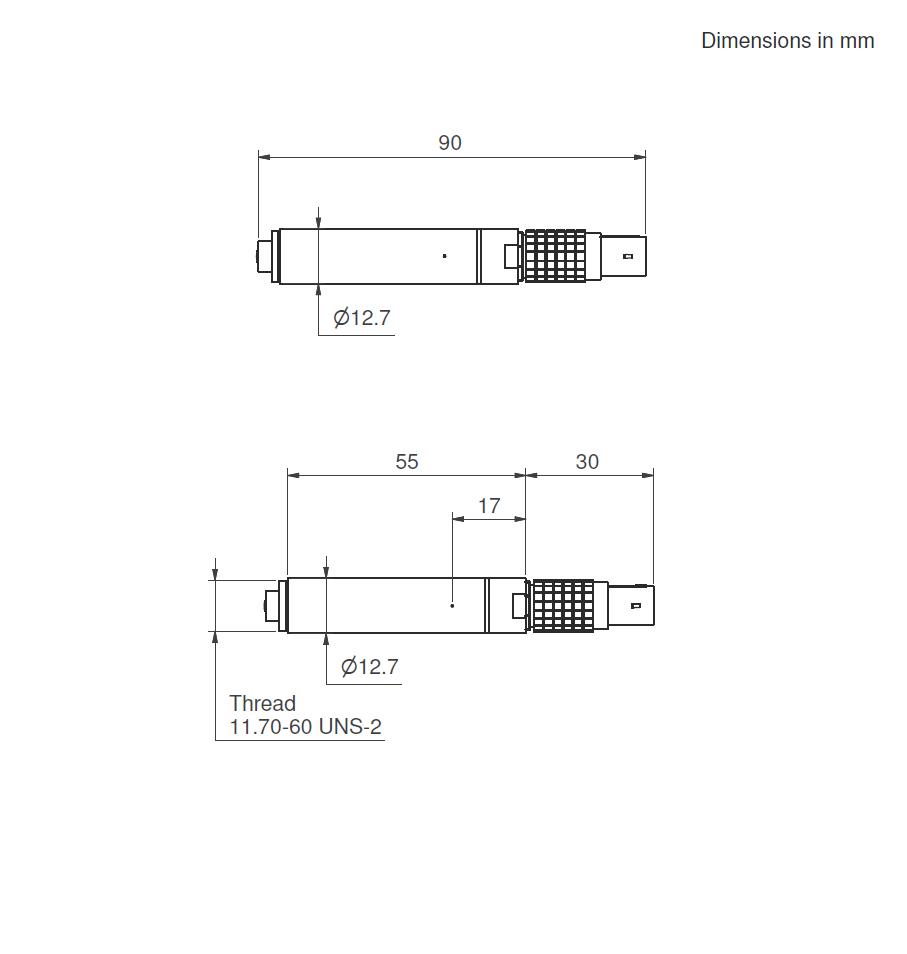

Dimensions
(1).jpg)
