The GRAS 26CC 1/4\" Preamplifier is a general purpose preamplifier optimized for use with prepolarized condenser microphones. It is a small, robust unit and uses a GRAS CCP power supply, e.g. GRAS 12AL. It has a very low inherent noise level, a large dynamic range and a frequency response from below 2 Hz to above 200 kHz.
Technology
Typical applications and use
- CCP inputs
- Plugs into Array Module PR0001(-1)
- Prepolarized microphones
- 1/4\" precision microphones
- High levels and high frequencies

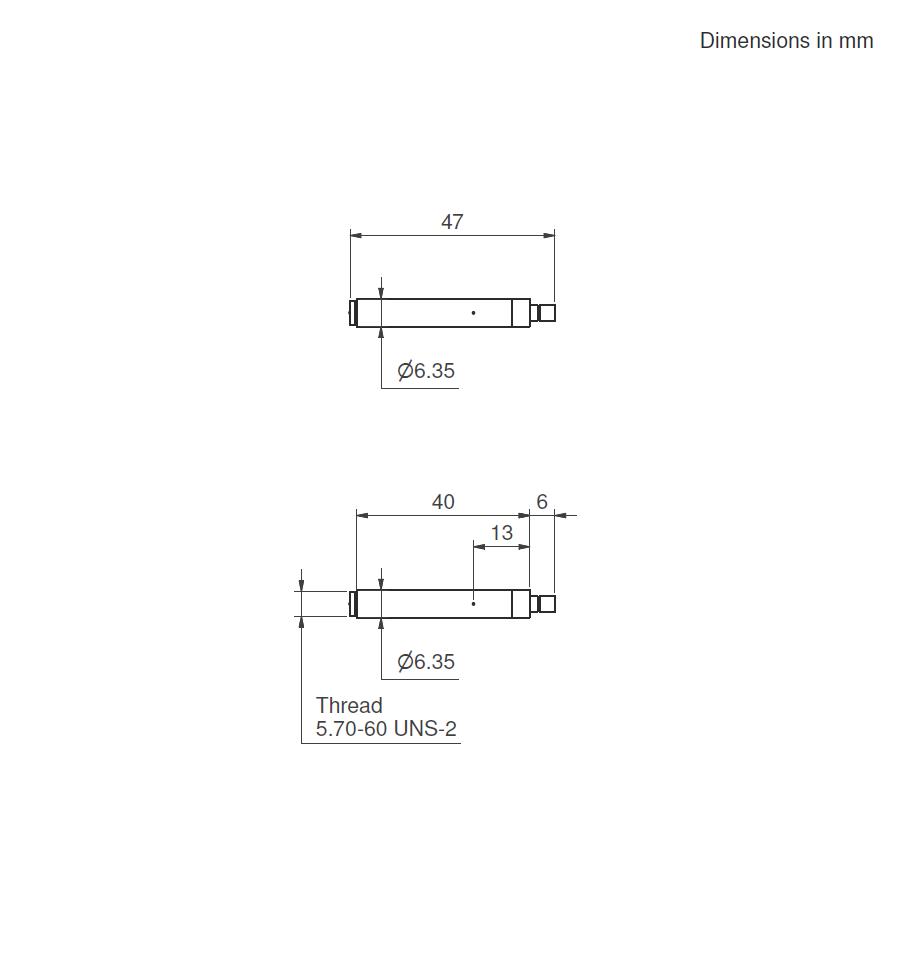

Design
The GRAS 26CC 1/4\" Preamplifier\'s small ceramic thick-film substrate has a very high input impedance, and is shielded by a guard ring to minimise the influence of stray capacitance and microphonic interference.
The 26CC is delivered with a built-in TEDS chip, and can be programmed as a single unit with a microphone fitted. It can be used with GRAS 40BE and 40BD ¼-inch prepolarized microphones and 40AE, 40AD and 40AQ ½-inch microphones using the included GRAS GR0010 Adapter for 1/4\" preamplifier and 1/2\" microphone.
SMB-to-BNC cables in standard and customized lengths are available. The casing is made of stainless steel for maximumstrength and durability.
Specifications
| Parameter |
Unit |
Value |
| Frequency range (±0.2 dB) with 18 pF microphone dummy |
Hz |
2.5 to 200 k |
| Slew rate |
V/µs |
20 |
| Input impedance |
GΩ // pF |
20 // 0.4 |
| Output impedance |
Ω |
< 50 |
| Output Voltage Swing, min. @ 24–28 V CCP voltage supply |
Vp |
8 |
| Noise (A-Weighted) max. |
µV |
2.5 |
| Noise (A-Weighted) typ. |
µV |
1.8 |
| Noise (Linear 20 Hz – 20 kHz) max. |
µV |
6 |
| Noise (Linear 20 Hz – 20 kHz) typ. |
µV |
3.5 |
| Gain |
dB |
-0.35 |
| Power supply (Constant Current Power) |
mA |
2 to 20 (typ. 4) |
| DC bias voltage, typ. |
V |
12 |
| Temperature range, operation |
°C / °F |
-30 to 70 / -22 to 158 |
| Temperature range, storage |
°C / °F |
-40 to 85 / -40 to 185 |
| Humidity range non condensing |
% RH |
0 – 95 |
| TEDS (IEEE 1451.4) |
– |
769 v. 0.9 |
| Connector type |
– |
SMB |
| CE / RoHS compliant / WEEE registered |
– |
Yes / Yes / Yes |
| Weight |
g / oz |
8.0 / 0.28 |
Conditions: 23 °C Ambient temperature, 4 mA / 24 V open loop CCP voltage, 18 pF dummy microphone & 3 m coax-cable.
.jpg)

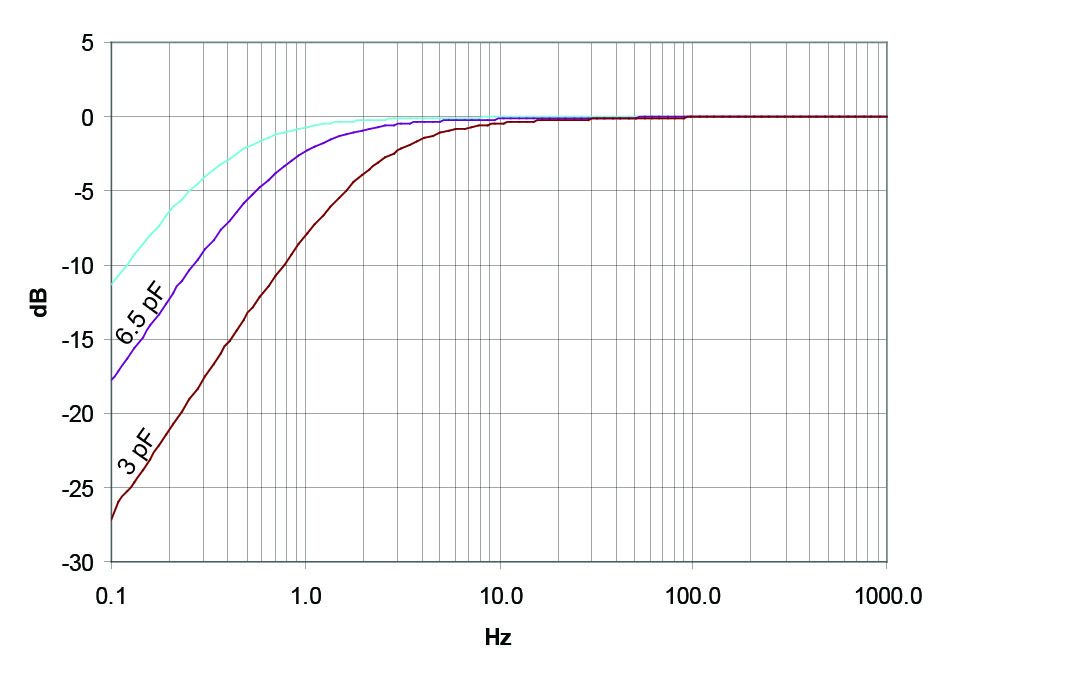

Typical low-frequency response of Type 26AL for ½″ (20 pF), ¼″ (6.5 pF) and ⅛″ (3 pF) microphones
.jpg)

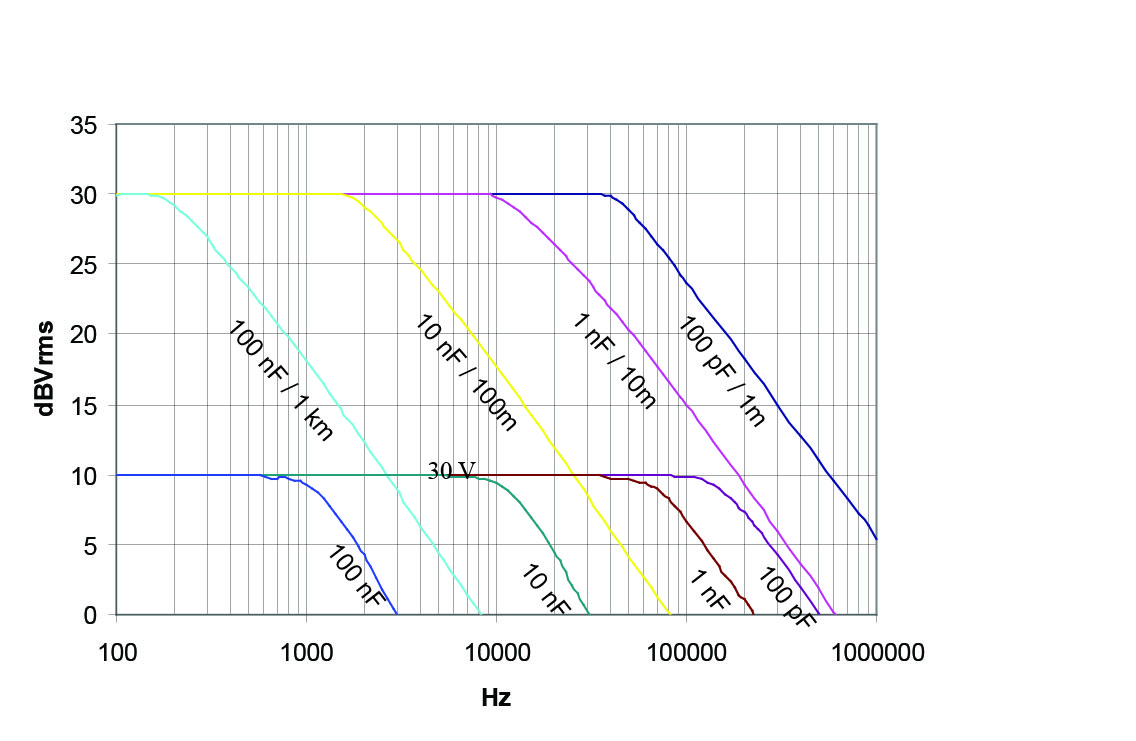

Typical max. rms output signal with 120 V and 30 V supply GRAS Sound & Vibration reserves the right to change specifications and accessories without notice.
