GRAS 12BC, 12BF and 12BD LEMO Power Modules with TEDS Support

  •  Part Number: GRAS 12BC, 12BF và 12BD
     Category: GRAS Sound & Vibration
  •  View: 49
     Status: Available

  • Power modules
    Connection: LEMO
    Traditional 200 V
    Channel(s): 1, 2 or 4
    TEDS via USB

  • Sale Price: Liên hệ
  • 0903368648
    +84903368648
Product Information

GRAS 12BC, 12BF and 12BD are 1-, 2- and 4-channel LEMO power modules, respectively. They have TEDS support and can be powered by USB or AC mains (included).

Technology

The GRAS 12BC, 12BF and 12BD  are, respectively, single- two- and four-channel USB-powered LEMO power modules with TEDS support.

These power modules provide power to microphone sets without signal degradation, gain modification, or attenuation.

This series excells as a simple and cost-effective interface between TEDS-enabled measurement microphones and any Audio Precision APx series analyzer, which will automatically extract TEDS data for seamless integration.

However, these power modules can also be used with other brands. In this case, a utility program provides access to TEDS data on a PC. This utility program can be downloaded here.

Power for 12BC, 12BF and 12BD is provided through a USB cable if the port can supply a minimum of 1.5 A that is required by the module. Power can be supplied via a USB 2.0 or USB 3.0 port connected to a USB-C port on the power module or AC mains power through the AUXPWR port if the minimum 1.5 A is not available through the USB-C port.

If more channels are needed, multiple power modules can be used concurrently.

Specifications

Frequency response (±0.06 dB) (with 100 kΩ load) Hz 10 to 20
Frequency response (±0.03 dB) (with 100 kΩ load) Hz 20 to 200,000
Intrinsic noise, input short-circuited (10 Hz – 20 kHz) µVrms 2
Overload indicator   No
Operating temperature °C / °F 0 to +45 / 32 to 113
Storage temperature range °C / °F -40 to +75 / -40 to 167
Humidity (non-condensing) % Max. 90
Dimensions incl. mounting ears (W × H × D) mm / inch 108 × 44.2 × 178.3 / 4.35 × 1.74 × 7.02
Channels, 12BC   1
Channels, 12BF   2
Channels, 12BD   4
Polarization voltage V 200
Preamplifier supply voltage Vdc ±15
Maximum input voltage Vp 14
USB port   USB-C
USB power +5 Vdc A 1.5
External power +5 Vdc A 1.5
External power connector   DC (5.5 mm × 2.1 mm)
Weight 12BC (1 Ch) g / oz 390 / 13.8
Weight 12BF (2 Ch) g / oz 425 / 15.0
Weight 12BD (4 Ch) g / oz 494 / 17.4

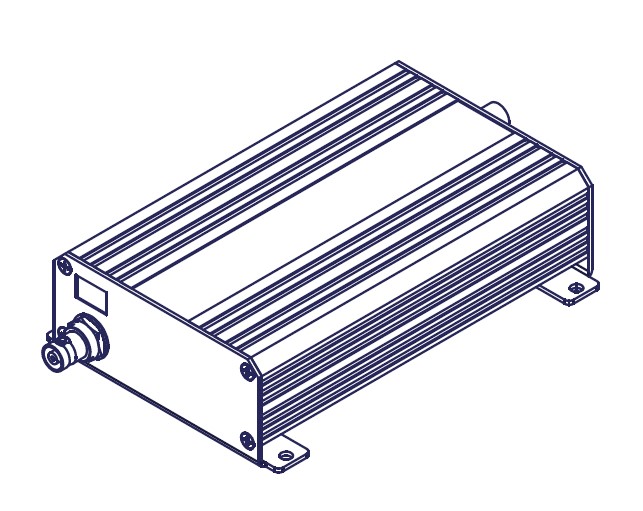

Dimensions
