GRAS 12BA, 12BE and 12BB CCP Power Modules with TEDS Support

  •  Part Number: GRAS 12BA, 12BE và 12BB
     Category: GRAS Sound & Vibration
  •  View: 6
     Status: Available

  • Microphone power: CCP
    Channel(s): 1, 2, or 4
    TEDS via USB

  • Sale Price: Liên hệ
  • 0903368648
    +84903368648
Product Information

12BA, 12BE and 12BB are 1-, 2- and 4-channel CCP power modules, respectively. They have SysCheck2™ and TEDS support and are powered by USB.

Technology

The GRAS 12BA, 12BE and 12BB  are, respectively, single- two- and four-channel USB-powered CCP power modules with TEDS support, and they are able to take full advantage of GRAS SysCheck2™-enabled microphones, such as GRAS 246AE.

These power modules provide power to microphone sets without signal degradation, gain modification, or attenuation.

This series excels as a simple and cost-effective interface between TEDS-enabled measurement microphones and any Audio Precision APx series analyzer, which will automatically extract TEDS data for seamless integration. Full SysCheck2TM functionality is also automatically available when connected to APx500 release v7.0 Measurement Software with GRAS 12BA, 12BE, or 12BB power modules and an Audio Precision APx series analyzer, or with an Audio Precision APx series analyzer with CCP and TEDS read capability.

However, these power modules can also be used with other brands.  In this case, a TEDS utility program provides access to TEDS data on a PC. Download TEDS utility program here. The SysCheck2 Software Development Kit is available from the microphone product pages.

Power for the 12Bx series is provided through a USB cable using a USB 2.0 or USB 3.0 port and a USB-C port on the power module.

If more channels are needed, multiple power modules can be used concurrently.



Specifications

Frequency response (±0.06 dB) (with 100 kΩ load) Hz 10 to 20
Frequency response (±0.03 dB) (with 100 kΩ load) Hz 20 to 200,000
Intrinsic noise, input short-circuited, 10 Hz – 20 kHz µVrms 2
Overload indicator   No
Operating temperature range °C / °F 0 to +45 / 32 to 113
Storage temperature range °C / °F -40 to +75 / -40 to 167
Humidity (non-condensing) % Max. 90
Dimensions incl. mounting ears (W × H × D) mm / in 108 × 44.2 × 178.3 / 4.35 × 1.74 × 7.02
Channels, 12BA   1
Channels, 12BE   2
Channels, 12BB   4
CCP preamplifier supply @ +24 V mA 4
Maximum input voltage V 24
USB type   USB-C
USB power supply A 0.5
Weight 12BA, 1 Ch g / oz 397 / 14.0
Weight 12BE, 2 Ch g / oz 425 / 18.0
Weight 12BB, 4 Ch g / oz 494 / 15.3

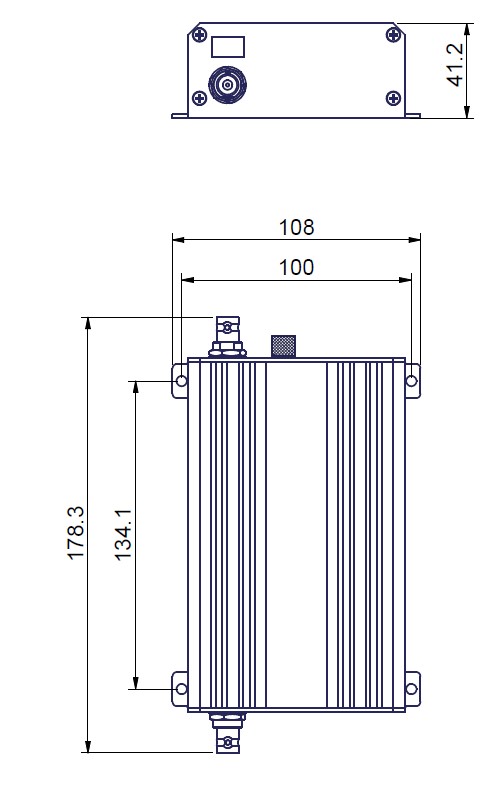

Dimensions
