Mô-đun nguồn CCP 4 kênh GRAS 12AX với chức năng tăng âm.

GRAS 12AX 4-Channel CCP Power Module with Gain

Part Number: GRAS 12AX

Category: GRAS Sound & Vibration

Status: Available

Connection: CCP Channels: 4
Gain: 0, 20, 40 dB

Sale Price: Liên hệ

0903368648

+84903368648

The GRAS 12AX CCP (Constant Current Power) Supply is a low-noise 4-channel power supply for CCP microphone sets.

Technology

Introduction

The GRAS 12AX is a constant current power module for powering 4 CCP preamplifiers/microphone sets.

It is optimized for integration into a production environment. The anodized enclosure is sturdy and offers good protection against dirt, dust, and moisture.

Except for the power switch, it has no external user controls. In this way unintended change of the gain settings is avoided.

Design

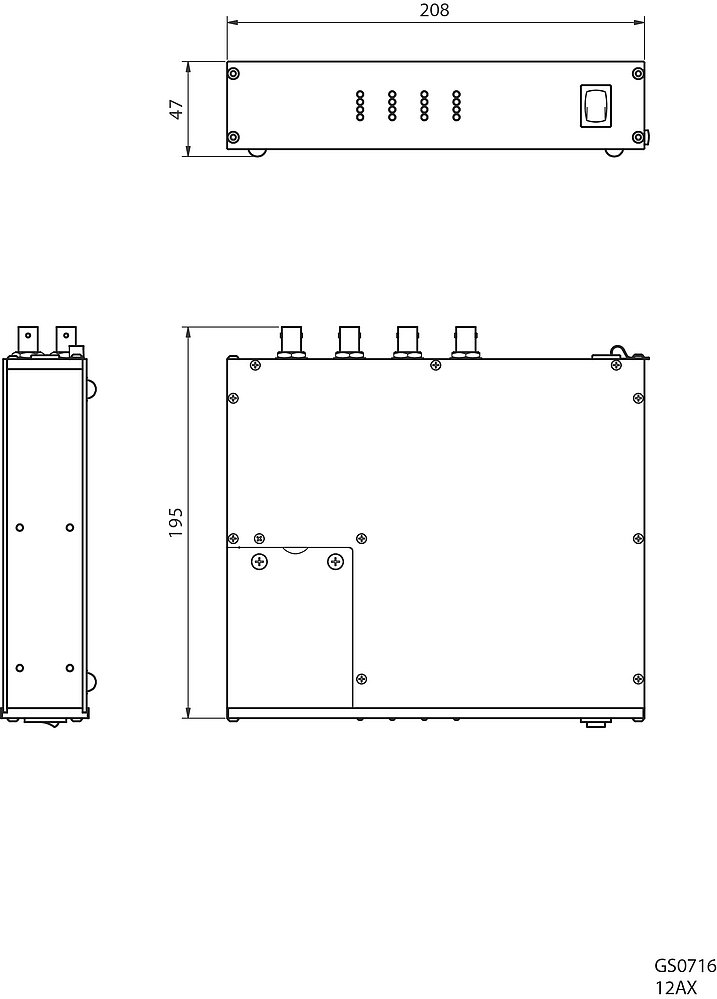

As the 12AX is a 4-channel unit, it has 8 BNC connectors, 4 for the input from the microphones and 4 for the output to the analyzer. All connectors are mounted on the rear panel.

It provides 5 mA of constant current at +28 VDC compliance voltage level.

The gain is selectable individually for each channel by means of jumpers. These are accessible by removing a cover at the top plate. The gain can be set to 0, 20 or 40 dB. The chosen gain is indicated by green LEDs on the front panel.

It has error detection at the input and overload detection at the output. The error detection at the input warns against a DC error, typically a short or a broken connection. The overload detection is applied at the output. If the signal exceeds 22 VACp-p, the overload detection will warn about it. DC error and overload are indicated by red LEDs on the front panel, one for each channel.

It has a low noise floor and a wide frequency range: At 0 dB gain, the noise is 1.5 µV and the frequency range from 1 to 300 kHz (+1/-3 dB).

It can handle long cables without significant degradation of the frequency performance.

It operates from 9 - 18 VDC from a mains voltage adapter which is included.

Warranty

All GRAS products are made of high-quality materials that will ensure life-long stability and robustness. The 12AX is delivered with a 2-year warranty. The warranty does not cover products that are damaged due to negligent use.

Service and Repairs

All repairs are made at GRAS International Support Center located in Denmark. Our Support Center is equipped with the newest test equipment and staffed with dedicated and highly skilled engineers. Upon request, we make cost estimates based on fixed repair categories. If a product covered by warranty is sent for service, it is repaired free of charge, unless the damage is the result of negligent use or other violations of the warranty.

Specifications

Frequency response (+1, -3 dB) @ Gain = 0 dB	Hz	1 to 300,000
Frequency response (+1, -3 dB) @ Gain = 20 dB	Hz	1 to 200,000
Frequency response (+1, -3 dB) @ Gain = 40 dB	Hz	1 to 70,000
Output channels		4
Output impedance	Ω	75
Direct input-to-output connection		No
Intrinsic noise (20 Hz to 20 kHz) @ Gain = 0 dB	µVrms	1.5
Noise floor (20 Hz to 20 kHz) @ Gain = 20 dB	µVrms	15
Noise floor (20 Hz to 20 kHz) @ Gain = 40 dB	µVrms	150
Gain settings (step 20 dB)	dB	0, 20, 40
Gain error	dB	±0.15
Linear mode		Yes
Type		Constant Current Power (CCP)
Input channels, CCP		4
CCP preamplifier supply at +28 V	mA	5
Overload indicator		Yes
PC controllable		No
External filter option		No
Power amplifier overload detection		No
External power supply	Vdc	9 to 18
Low battery indicator		No
Operating temperature range	°C / °F	-10 to +50 / 14 to 122
Weight	g / oz	1,100 / 38.8
